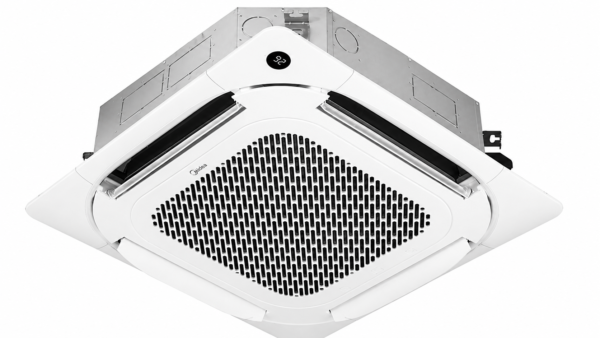

Midea Split four way Cassette Air Conditioner 36000BTU MCD1-36CRN8

Brand

Midea

Model

MCD1-36CRN8

Type	Split Four-Way Ceiling Cassette

Cooling Capacity

36,000 BTU/h (Approx. 10.5 kW / 4 HP)

Operation

Cooling Only (Non-Inverter)

Refrigerant

R32

Air Distribution

360° Four-Way Airflow

Installation

Ceiling Cassette (Concealed)

Recommended Room Size

Approximately 50–60 m²

Power Supply

Available in single-phase or three-phase versions depending on market/region

Warranty

• 5-year compressor warranty
• 1-year unit warranty

Key Features

• ✅ 360° Airflow Panel for uniform cooling throughout the room.
• ✅ Slim Indoor Unit suitable for false ceilings.
• ✅ R32 Refrigerant for improved cooling efficiency and lower environmental impact.
• ✅ Built-in Drain Pump with up to 750 mm lift for easier condensate drainage.
• ✅ Fresh Air Intake capability to improve indoor air quality.
• ✅ Quiet Operation with optimized fan design.
• ✅ LED Display Panel for temperature and operation status.
• ✅ Auto Restart after power failures.
• ✅ Sleep Mode for quieter, more comfortable operation.
• ✅ Timer Function for scheduled operation.
• ✅ Wireless Remote Control (wired controller optional on many installations).

Technical Highlights

• Cooling Capacity: 36,000 BTU/h
• Cooling Type: Cooling Only
• Compressor: High-efficiency rotary/scroll type (varies by regional package)
• Refrigerant: R32
• Indoor Unit: Ceiling cassette
• Airflow: 4-way discharge with 360° air distribution
• Drain Pump: Built-in
• Fresh Air Connection: Yes
• Copper Tube Heat Exchanger: Yes
• Anti-corrosion Fin Coating: Yes

Ideal Applications

• Offices
• Retail shops
• Restaurants
• Hotels
• Conference rooms
• Classrooms
• Showrooms
• Banks
• Reception areas
