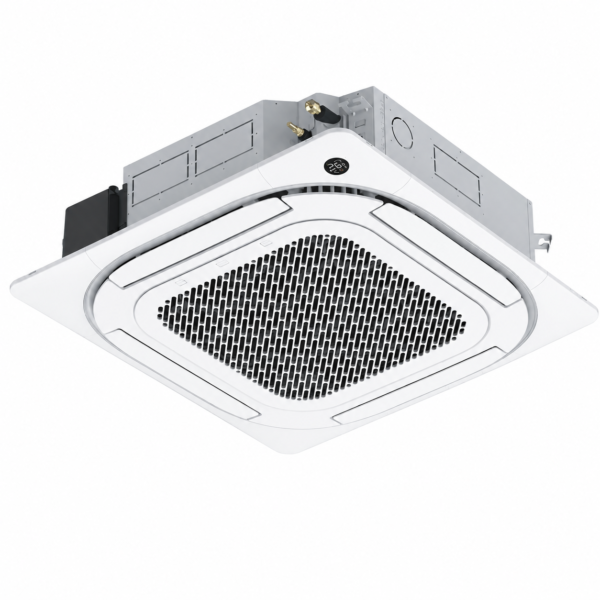

Midea Split four way Cassette Inverter Air Conditioner 24000BTU MCD1-24CRDN8

Model

MCD1-24CRDN8

Cooling Capacity

24,000 BTU/h (7.03 kW)

Heating Capacity

7.03 kW (Heat Pump models)

Technology

DC Inverter

Refrigerant

R32

Power Supply

220–240V / 1 Phase / 50Hz

Cooling Power Input

0.4–3.155 kW

Airflow

1450 / 1250 / 1100 m³/h

Indoor Noise Level

39–46 dB(A)

Outdoor Noise Level

60.5 dB(A)

Indoor Dimensions

840 × 840 × 205 mm

Outdoor Dimensions

845 × 363 × 702 mm

Indoor Weight

24 kg

Outdoor Weight

49 kg

Maximum Pipe Length

25 m

Maximum Height Difference

15 m

Energy Rating

A++ Cooling / up to A+++ Heating (variant dependent)

Warranty

• 5-year compressor warranty
• 1-year unit warranty

Key Features

• ✅ 24,000 BTU cooling capacity
• ✅ DC Inverter technology for lower electricity consumption
• ✅ 360° air distribution for even cooling
• ✅ R32 eco-friendly refrigerant
• ✅ Super slim indoor unit design
• ✅ Built-in drain pump (up to 750 mm lift)
• ✅ Quiet operation
• ✅ Independent airflow vane control
• ✅ Auto Restart after power failure
• ✅ Fresh air intake provision
• ✅ Remote control operation
• ✅ Suitable for offices, showrooms, restaurants, hotels, classrooms, and commercial spaces.

Main Advantages

• ❄️ Fast and uniform cooling with 360° airflow
• 💡 Inverter compressor reduces electricity costs
• 🔇 Low noise operation
• 🏢 Ideal for large commercial spaces
• 💧 Built-in condensate drain pump simplifies installation
• 🌱 Uses environmentally friendly R32 refrigerant
• 📏 Slim ceiling cassette design for modern interiors.

Recommended Room Size

• Approximately 35–50 m²
• Suitable for:
  • Offices
  • Restaurants
  • Retail shops
  • Showrooms
  • Conference rooms
  • Hotels.

Package Includes

• Indoor cassette unit
• Outdoor condenser unit
• Decorative ceiling panel
• Wireless remote control
• User manual
