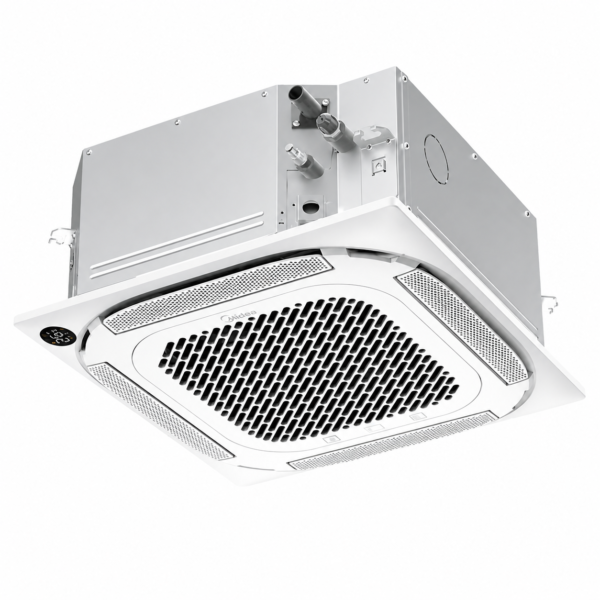

Midea Split four way Cassette Inverter Air Conditioner 60000BTU MCD1-60HRFN8

General Specifications

• Brand: Midea
• Model: MCD1-60HRFN8
• Type: 4-Way Ceiling Cassette Inverter Air Conditioner
• Capacity: 60,000 BTU/h (Approx. 17.6 kW)
• Operation: Cooling & Heating (Heat Pump)
• Technology: DC Inverter
• Refrigerant: R32 (Eco-friendly, low GWP)
• Installation: Ceiling Cassette (False Ceiling)

Warranty

• 1 Year comprehensive warranty
• 5 Years compressor warranty

Electrical

• Power Supply: 380–415V / 3 Phase / 50Hz (Typical for 60,000 BTU commercial units)
• Energy Saving: DC Inverter compressor automatically adjusts output to reduce electricity consumption.

Cooling & Heating Performance

• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: Up to 61,000 BTU/h
• Suitable Area: 140–180 m² (1,500–1,900 sq.ft., depending on insulation and heat load).

Main Features

• ✅ DC Inverter Technology
• ✅ 360° Four-Way Air Distribution
• ✅ Built-in Condensate Drain Pump
• ✅ Fresh Air Intake
• ✅ Turbo Cooling & Heating
• ✅ Quiet Operation
• ✅ Sleep Mode
• ✅ Auto Restart after Power Failure
• ✅ Self-Diagnosis Function
• ✅ Intelligent Defrost
• ✅ 24-Hour Timer
• ✅ Washable Air Filter
• ✅ Wired Remote Controller
• ✅ Optional Wi-Fi Control (model dependent)
• ✅ Independent Air Vane Control (selected markets)



Indoor Unit

• Airflow: Up to 2,100 m³/h
• Noise Level: Approximately 46–54 dB(A)
• Panel Size: 950 × 950 mm
• Body Size: Approx. 830 × 830 × 287 mm
• Panel Color: White

Outdoor Unit

• High-efficiency DC Inverter Compressor
• Low Noise Fan
• Anti-corrosion Condenser Fin
• Wide Operating Temperature Range
• Heavy-duty Commercial Design

Refrigerant Piping

• Liquid Pipe: 9.52 mm (3/8″)
• Gas Pipe: 19.05 mm (3/4″)
• Maximum Pipe Length: Up to 50 m
• Maximum Height Difference: Up to 30 m

Applications

Ideal for:

• Offices
• Banks
• Restaurants
• Hotels
• Showrooms
• Shopping Malls
• Conference Rooms
• Large Retail Stores
• Hospitals
